Pedders Foamcell 1.75 Inch Suspension Lift Kit. Ford Ranger 2023 on.

Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger 2023 on. 2.0 models

Improved looks and ground clearance.

Are you looking to raise your Ford Ranger? Want a better ride?

Then Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our Premium Lift kit, and is designed primarily to raise the vehicle and retain the ride on vehicles that do not normally carry a great deal of weight. If you regularly carry heavy loads or tow a trailer, then consider one of our heavy duty kit options

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

For those using the vehicle in a continuously laden state, please consider one of our heavy duty options.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

• 1.75 Inch Lift Kit
• Improved ride comfort
• Increased Off-Road Ground Clearance
• Sintered Iron Piston Shocks with Large 40mm Bore
• Premium Grade Steel Coils
• All backed by our 2 year / 40,000km warranty

Vehicle Height Information

Front: 605mm hub centre to wheel arch
Rear: Approx. 45mm higher than standard.

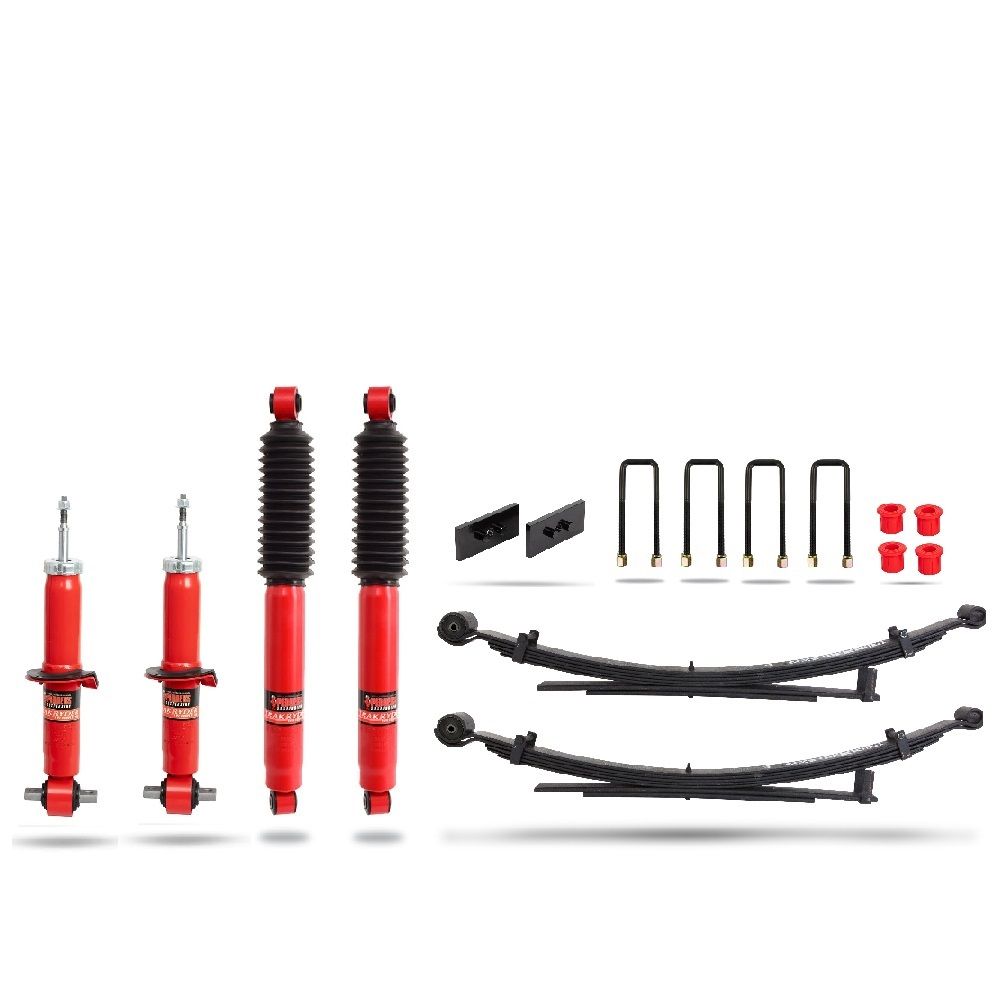

Contents of Kit 803575 (Pedders Part Numbers)

154407 x 2 - Pedders Foam Cell Shock, Front
280407 x 2- Pedders Coil Spring, Front
6298 x 2 - Pedders Rear Spring
151407 x 2 - Pedders Foam Cell Rear Shock
EP8415 x 1- Pedders Urethane Lower Shackle Bushes
4390 x 4 - Pedders U bolt
75-0006 x 1 - Leaf spring adaptor kit
