Pedders Extra Heavy Duty Load Carrying and Towing Suspension Kit. With Foam Cell Shocks & Assembled Front Struts. Toyota Hilux MK8 & MK9

Pedders Extra Heavy Duty Load Carrying and Towing Suspension Kit. With Foam Cell Shocks & Assembled Front Struts. Toyota Hilux MK8 & MK9

Improved load carrying and towing ability and ground clearance.
Do you use your Hilux for load carrying and/or towing?
Then Pedders Suspension have the solution for you.
This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them. Additionally I has supplementary air bags.
This kit is our second level heavy duty kit and is designed primarily to raise the vehicle and improve its load carrying and towing ability. If your Hilux currently sits low at the rear when towing or load carrying, but you still also operate in the unladen condition, then this kit offers a significant improvement compared to the standard vehicle.
This kit is for those who subject there vehicle to significant changes in load on a regular basis, and for whom the fully laden condition is greater than our Heavy Duty kit 803239 can accommodate, and where a stiffer rear spring would introduce an unacceptably harsh ride in the unladen state.
Typical applications are vehicle used by window cleaners with a large water tank installed which will vary from empty to full.
This kit improves the load carrying ability compared to the standard Hilux rear spring whilst still allowing operation in the unladen state. However, our rear spring, combined with our specially valved shock, allows us to retain a level of ride comfort unladen comparable to the standard vehicle. For more information on how we achieve this, please see our technical pages.
Whilst the rear spring in this kit is heavier duty than the standard spring there is a limit to what in can support. To assist with this, this kit comes with supplementary air bags. These are installed between the rear leaf springs and the chassis rails. The kit as supplied requires these to be inflated with an airline (the same as used to inflate your tyres) when heavily laden in order raise the rear of the vehicle to an acceptable height. An “on board” air option is available by purchasing our kit 499000.
This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.
For those using the vehicle in a continuously laden state, consider or Extra Heavy Duty kit 803241.
The fully assembled Ezifit struts in this kit allow quick and easy fitment to your vehicle. These feature a Pedders Foam cell shock, Pedders spring as well as new top mount bump stop and boot. No need to use spring compressors or re-use any old parts. Simply bolt straight on.
After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.
Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

• Heavy Duty Kit
• Improved load carrying and towing
• Increased Off-Road Ground Clearance
• Sintered Iron Piston Shocks with Large 40mm Bore
• Premium Grade Steel Coils
• Air Assist air bag system
• All backed by our 2 year / 40,000km warranty

Vehicle Height Information

Front: 805mm with 18 inch wheels
Rear: Approx. 40mm higher than standard.

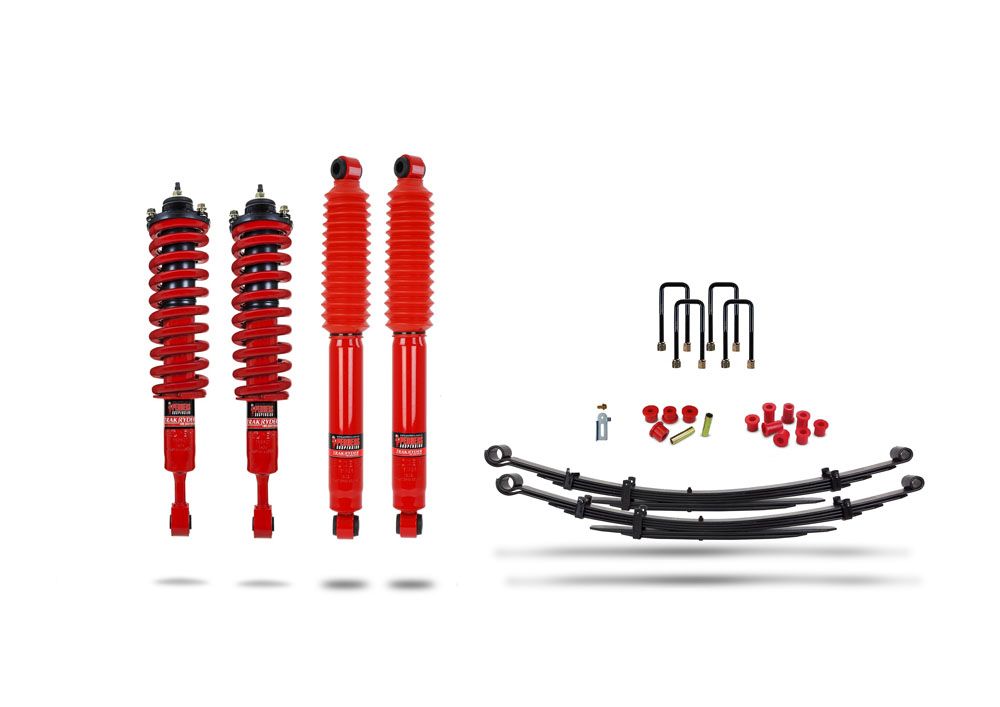

Contents of Kit 803120 (Pedders Part Numbers)

807305 x 2 - Pedders Foam Cell Ezifit Strut
264011 x 2 - Pedders Heavy Duty Rear Spring
151241 x 2 - Pedders Foam Cell Rear Shock
EP8338 x 1 – Pedders Urethane Leading Eye Bushes
EP8339 x 1- Pedders Urethane Lower Shackle Bushes
4392 x 4 - Pedders U bolt
5056 x 1 – Headlight Levelling Bracket
265012 x 1 - Air Assist Kit
