Pedders 1.75 Inch Lift Kit. With Assembled Foam Cell Struts. Isuzu D-Max

Pedders 1.75 Inch Lift Kit. With Assembled Foam Cell Struts. Isuzu D-Max

Improved looks and ground clearance.

Are you looking to raise your D-Max? Looking for a better ride?

Then Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is is designed primarily to raise the vehicle and maintain good ride comfort, whilst offering a useful improvement in its ability to carry load over the standard factory suspension. If you regularly carry heavy loads or tow a trailer, then consider one of our heavy duty kit options

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

For those using the vehicle in a continuously laden state, please consider one of our heavy duty options.

The fully assembled Ezifit struts in this kit allow quick and easy fitment to your vehicle. These feature a Pedders Foam cell shock, Pedders spring as well as new top mount bump stop and boot. No need to use spring compressors or re-use any old parts. Simply bolt straight on.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.
Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

• 1.75 Inch Lift Kit
• Improved ride comfort
• Increased Off-Road Ground Clearance
• Sintered Iron Piston Shocks with Large 40mm Bore
• Premium Grade Steel Coils
• All backed by our 2 year / 25,000 mile warranty

Vehicle Height Information

Approx. 40mm higher than standard
Rear: Approx. 40mm higher than standard.

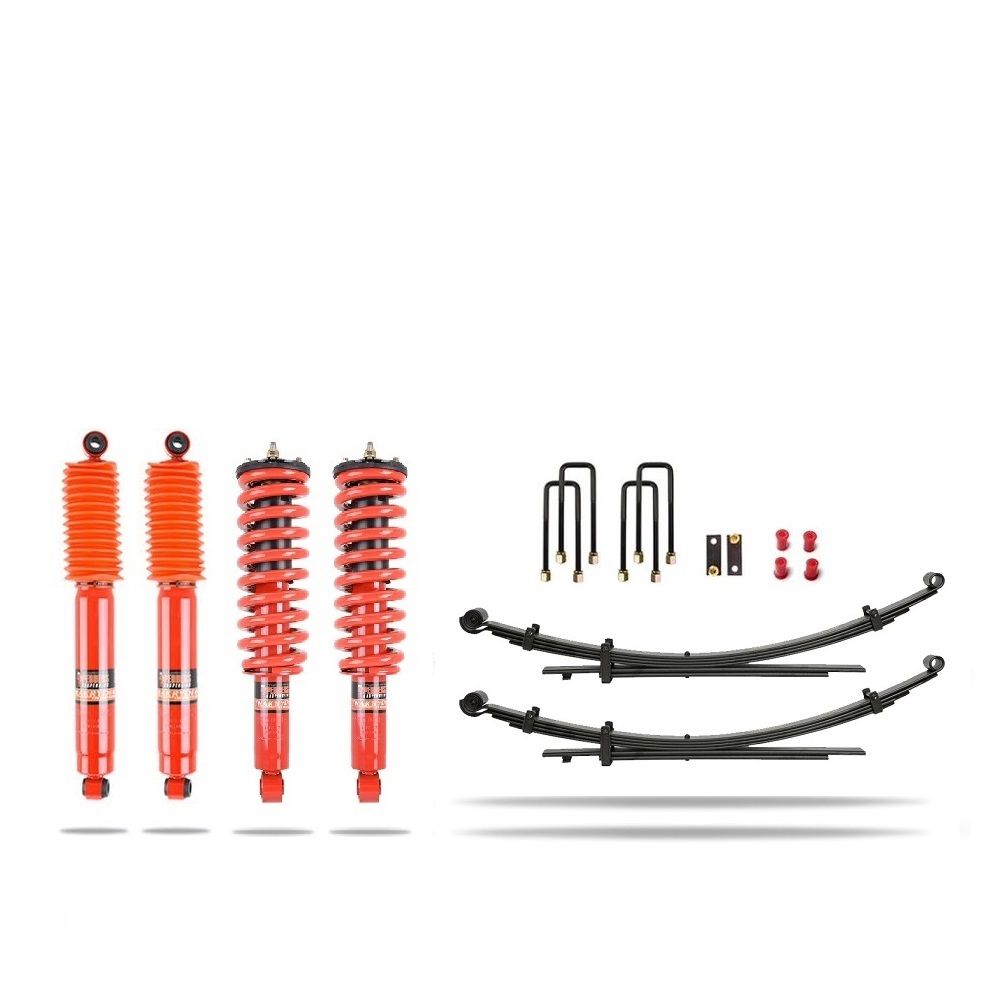

Contents of Kit 803409 (Pedders Part Numbers)

807228 x 2 - Pedders Foam Cell Ezifit Front Strut
263002 x 2 - Pedders Heavy Duty Rear Spring
151242 x 2 - Pedders Trakryder Foam Cell Rear Shock
EP8407 x 1 – Pedders Urethane Leading Eye Bushes
EP8003 x 1 - Pedders Urethane Lower Shackle Bushes
4382 x 4 - Pedders U bolt.
